Bitwarden and docker

vin0t · February 13, 2021, 10:47am

Docker and bitwarden is installed..
normally when I enter https://tivi.selfdhost.me in my browser, bitwarden has to come, but I get the internal friztbox page ???

Pulsar · February 14, 2021, 10:12am

Hello @vin0t ,

I have two suggestions:

Try the Ip address where the bitwarden is running directly.
Check at which port bitwarden is running and add that accordingly (ex. 192.168.1.100:8443)

vin0t · February 15, 2021, 3:12pm

Hi Pulsar,
How can I find my IP and port?
is ony bwdata /nginx/default.conf but not nginx-conf

Pulsar · February 15, 2021, 6:59pm

Hello @vin0t,

To find your ip simply run ip addr on linux and on windows ipconfig.

For the port, search under bwdata/docker for docker-compose.yml. On the compose file search for port, you should normaly see:

ports:
      - '80:8080'
      - '443:8443'

Note: there is also a docker-compose.override.yml file. This one overrides the above. Please search there if there are ports overriden, example:

ports:
      - '8000:8080'
      - '443:8443'

In that case your non TLS port would be 8000 and TLS port is 443 (which is simply accessed with https://<IP-ADDRESS>

If you are running it on your PC directly you can simply type:
localhost:8000

PS: There is an easier way: docker container ls and search for bitwarden/nginx and look at the ports , but I think the information above is useful.

Hope this helps

vin0t · February 16, 2021, 10:27am

Hi Pulsar,
“docker container ls” → Something is wrong here, the port cannot be seen

The file bwdata / docker for docker-compose.yml is there, but
the file bwdata / docker for docker-compose.overrider.yml does not exist.

Pulsar · February 16, 2021, 8:30pm

It seems that bitwarden-nginx container is not functioning properly (Restarting). Check out the logs by running docker-compose logs -f | grep "nginx" under the folder where docker-compose.yml file is.

vin0t · February 17, 2021, 3:03pm

my docker-compose.yml
identity:

image: bitwarden/identity:1.39.4

container_name: bitwarden-identity

restart: always

volumes:

  - ../identity:/etc/bitwarden/identity

  - ../core:/etc/bitwarden/core

  - ../ca-certificates:/etc/bitwarden/ca-certificates

  - ../logs/identity:/etc/bitwarden/logs

env_file:

  - global.env

  - ../env/uid.env

  - ../env/global.override.env

networks:

  - default

  - public

sso:

image: bitwarden/sso:1.39.4

container_name: bitwarden-sso

restart: always

volumes:

  - ../identity:/etc/bitwarden/identity

  - ../core:/etc/bitwarden/core

  - ../ca-certificates:/etc/bitwarden/ca-certificates

  - ../logs/sso:/etc/bitwarden/logs

env_file:

  - global.env

  - ../env/uid.env

  - ../env/global.override.env

networks:

  - default

  - public

admin:

image: bitwarden/admin:1.39.4

container_name: bitwarden-admin

restart: always

depends_on:

  - mssql

volumes:

  - ../core:/etc/bitwarden/core

  - ../ca-certificates:/etc/bitwarden/ca-certificates

  - ../logs/admin:/etc/bitwarden/logs

env_file:

  - global.env

  - ../env/uid.env

  - ../env/global.override.env

networks:

  - default

  - public

icons:

image: bitwarden/icons:1.39.4

container_name: bitwarden-icons

restart: always

volumes:

  - ../ca-certificates:/etc/bitwarden/ca-certificates

  - ../logs/icons:/etc/bitwarden/logs

env_file:

  - global.env

  - ../env/uid.env

networks:

  - default

  - public

notifications:

image: bitwarden/notifications:1.39.4

container_name: bitwarden-notifications

restart: always

volumes:

  - ../ca-certificates:/etc/bitwarden/ca-certificates

  - ../logs/notifications:/etc/bitwarden/logs

env_file:

  - global.env

  - ../env/uid.env

  - ../env/global.override.env

networks:

  - default

  - public

events:

image: bitwarden/events:1.39.4

container_name: bitwarden-events

restart: always

volumes:

  - ../ca-certificates:/etc/bitwarden/ca-certificates

  - ../logs/events:/etc/bitwarden/logs

env_file:

  - global.env

  - ../env/uid.env

  - ../env/global.override.env

networks:

  - default

  - public

nginx:

image: bitwarden/nginx:1.39.4

container_name: bitwarden-nginx

restart: always

depends_on:

  - web

  - admin

  - api

  - identity

ports:

  - '8000:8080'

  - '443:8443'

volumes:

  - ../nginx:/etc/bitwarden/nginx

  - ../letsencrypt:/etc/letsencrypt

  - ../ssl:/etc/ssl

  - ../logs/nginx:/var/log/nginx

env_file:

  - ../env/uid.env

networks:

  - default

  - public

networks:

default:

internal: true

public:

internal: false

Pulsar · February 17, 2021, 7:12pm

**)
There should be two certificates (fullchain.pem, key.**pem) for bitwarden in any of these folders:

  ../nginx
  ../letsencrypt
  ../ssl

which they should be under bwdata.

Sorry I just forgot that you are using windows, try this and it should give you logs from nginx container that is not running properly:
docker-compose logs bitwarden-nginx
or check the directory

  ../logs/nginx /* From docker-compose.yml file */

Hope this helps

vin0t · February 17, 2021, 8:33pm

Sorry I just forgot that you are using windows, try this and it should give you logs from nginx container that is not running properly:
docker-compose logs bitwarden-nginx

vin0t · February 18, 2021, 2:24pm

logs:
2021/02/12 18:50:31 [emerg] 1#1: cannot load certificate “/etc/letsencrypt/live/tivi.selfhost.me/fullchain.pem”: BIO_new_file() failed (SSL: error:02001002:system library:fopen:No such file or directory:fopen(’/etc/letsencrypt/live/tivi.selfhost.me/fullchain.pem’,‘r’) error:2006D080:BIO routines:BIO_new_file:no such file)

vin0t · February 18, 2021, 2:29pm

vin0t · February 18, 2021, 4:22pm

Hi Pulsar,

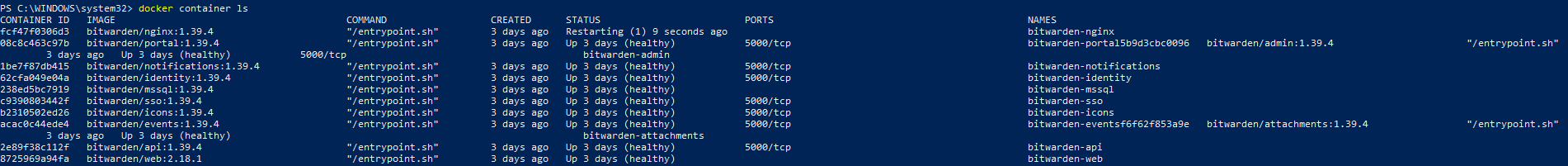

my docker ps -a

when I enter https://tivi.selfdhost.me in my browser, bitwarden has to come, but I get the internal friztbox page ???

Pulsar · February 18, 2021, 5:12pm

Hello @vin0t,

That looks good, how did you fix the problem?

Before trying directly your link, try first to access it directly http://localhost and https://localhost

For the domain, I have some questions:

Are you hosting bitwarden on a local computer?
Do you want to access it from other devices in your local network?

vin0t · February 18, 2021, 6:35pm

Hi Pulsar,

That looks good, how did you fix the problem?
->Windows>System32>bwdata>nginx war just “default.conf”; duplicate the file and rename it to nginx.conf.
Problems:
Before trying directly your link, try first to access it directly http://localhost and https://localhost
http://localhost → This page is not working localhost did not send any data.
ERR_EMPTY_RESPONSE
https://localhost->The website is unreachable localhost has unexpectedly closed the connection.
Try the following:

Check connection
Check proxy and firewall
Run Windows Network Diagnostics
ERR_CONNECTION_CLOSED
why???

Pulsar · February 18, 2021, 7:39pm

Hi @vin0t,

strange, did you try 127.0.0.1:80, and 127.0.0.1:443 ?

If they are not working, is maybe the firewall blocking it?

Check out my nginx configuration, ${BW_HOST} is the hostname (ex. vault.example.com) and ${BW_TLS_PATH} is the path for the TLS certificates.

#######################################################################
# WARNING: This file is generated. Do not make changes to this file.  #
# They will be overwritten on update. You can manage various settings #
# used in this file from the ./bwdata/config.yml file for your        #
# installation.                                                       #
#######################################################################

server {
  listen 8080 default_server;
  listen [::]:8080 default_server;
  server_name ${BW_HOST};

  return 301 https://${BW_HOST}$request_uri;
}

server {
  listen 8443 ssl http2;
  listen [::]:8443 ssl http2;
  server_name ${BW_HOST};

  ssl_certificate     ${BW_TLS_PATH}/${BW_HOST}/fullchain.pem;
  ssl_certificate_key ${BW_TLS_PATH}/${BW_HOST}/key.pem;
  ssl_session_timeout 30m;
  ssl_session_cache shared:SSL:20m;
  ssl_session_tickets off;

  # Diffie-Hellman parameter for DHE ciphersuites, recommended 2048 bits
  ssl_dhparam ${BW_TLS_PATH}/dhparam.pem;

  ssl_protocols TLSv1.2;
  ssl_ciphers "ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256";
  # Enables server-side protection from BEAST attacks
  ssl_prefer_server_ciphers on;

  # OCSP Stapling ---
  # Fetch OCSP records from URL in ssl_certificate and cache them
  ssl_stapling on;
  ssl_stapling_verify on;

  # Verify chain of trust of OCSP response using Root CA and Intermediate certs
  ssl_trusted_certificate ${BW_TLS_PATH}/${BW_HOST}/fullchain.pem;
  resolver 1.1.1.1 1.0.0.1 9.9.9.9 149.112.112.112 valid=300s;

  include /etc/nginx/security-headers-ssl.conf;
  include /etc/nginx/security-headers.conf;

  location / {
    proxy_pass http://web:5000/;
    include /etc/nginx/security-headers-ssl.conf;
    include /etc/nginx/security-headers.conf;
    add_header Content-Security-Policy "default-src 'self'; style-src 'self' 'unsafe-inline'; img-src 'self' data: https://haveibeenpwned.com https://www.gravatar.com; child-src 'self' https://*.duosecurity.com; frame-src 'self' https://*.duosecurity.com; connect-src 'self' wss://${BW_HOST} https://api.pwnedpasswords.com https://twofactorauth.org; object-src 'self' blob:;";
    add_header X-Frame-Options SAMEORIGIN;
    add_header X-Robots-Tag "noindex, nofollow";
  }

  location /alive {
    return 200 'alive';
    add_header Content-Type text/plain;
  }

  location = /app-id.json {
    proxy_pass http://web:5000/app-id.json;
    include /etc/nginx/security-headers-ssl.conf;
    include /etc/nginx/security-headers.conf;
    proxy_hide_header Content-Type;
    add_header Content-Type $fido_content_type;
  }

  location = /duo-connector.html {
    proxy_pass http://web:5000/duo-connector.html;
  }

  location = /u2f-connector.html {
    proxy_pass http://web:5000/u2f-connector.html;
  }

  location /attachments/ {
    proxy_pass http://attachments:5000/;
  }

  location /api/ {
    proxy_pass http://api:5000/;
  }

  location /identity/ {
    proxy_pass http://identity:5000/;
  }

  location /icons/ {
    proxy_pass http://icons:5000/;
  }

  location /notifications/ {
    proxy_pass http://notifications:5000/;
  }

  location /notifications/hub {
    proxy_pass http://notifications:5000/hub;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection $http_connection;
  }

  location /events/ {
    proxy_pass http://events:5000/;
  }

  location /admin {
    proxy_pass http://admin:5000;
    include /etc/nginx/security-headers-ssl.conf;
    include /etc/nginx/security-headers.conf;
    add_header X-Frame-Options SAMEORIGIN;
  }
}

Hope this helps

vin0t · February 19, 2021, 2:34pm

enable ping on 127.0.0.1.
no enable http://localhost ???

why i can’t starting “webserver nginx”

vin0t · February 20, 2021, 8:09am

Pulsar · March 1, 2021, 4:06pm

Hello @vin0t,
did you manage to get it to work? Sadly it is a little bit difficult for me to help you as I have limited view of what is actually happening. When I find the time, I will recreate your situation in a windows environment and find out what possible problems are there.

Cheers

vin0t · January 21, 2022, 4:07pm

Hi Pulsar,
wie geht ?
Habe nun QNAP TS-x53D mit Virtualisierung (Ubuntu 20.4) und Bitwarden auf Terminal installiert.
Es scheint zu funktionieren. Nun möchte ich die Daten local behalten.
Wie ?
